Sitecore SIF NewSignedCertificate – The time period is invalid

Problem – The time period is invalid. 0x80630705

The client certificate for xConnect expired on my developer machine for a solution I was developing. I thought no problem I will get SIF to generate new certificates for the website and xConnect.

Unfortunately when I ran SIF, i got the following error when it was running CreateSignedCert : NewSignedCertificate.


PS>TerminatingError(New-SelfSignedCertificate): "CertEnroll::CX509Enrollment::_CreateRequest: The time period is invalid. 0x80630705 (-2140993787 PEER_E_INVALID_TIME_PERIOD)"
>> TerminatingError(New-SelfSignedCertificate): "CertEnroll::CX509Enrollment::_CreateRequest: The time period is invalid. 0x80630705 (-2140993787 PEER_E_INVALID_TIME_PERIOD)"
Install-SitecoreConfiguration : CertEnroll::CX509Enrollment::_CreateRequest: The time period is invalid. 0x80630705 (-21
40993787 PEER_E_INVALID_TIME_PERIOD)
At D:\Projects\FK.Donki\Sitecore\setup\FKCC-Install-Local-Sc-XP0.ps1:42 char:1
+ Install-SitecoreConfiguration @certParams -Verbose
+ ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
    + CategoryInfo          : NotSpecified: (:) [Write-Error], WriteErrorException
    + FullyQualifiedErrorId : Microsoft.PowerShell.Commands.WriteErrorException,Install-SitecoreConfiguration
Install-SitecoreConfiguration : CertEnroll::CX509Enrollment::_CreateRequest: The time period is invalid. 0x80630705 (-2
140993787 PEER_E_INVALID_TIME_PERIOD)
At D:\Projects\FK.Donki\Sitecore\setup\FKCC-Install-Local-Sc-XP0.ps1:42 char:1
+ Install-SitecoreConfiguration @certParams -Verbose
+ ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
    + CategoryInfo          : NotSpecified: (:) [Write-Error], WriteErrorException
    + FullyQualifiedErrorId : Microsoft.PowerShell.Commands.WriteErrorException,Install-SitecoreConfiguration




Firstly I would like to say thanks to Richard Dzien, from Sitecore as he was super quick via slack to help and identify what the problem.

The issue is caused by the fact that the Trusted root certificates, which had expired. See the image below.

Solution

Part 1 – Delete from Trusted Roots Certificates (Computer Account)

The solution is to delete the certificates form the machine account, which you can do either via the MMC certificates snap in or use power shell. Then run SIF again.

Part 2 – Delete from Trusted Roots Certificates (My User Account)

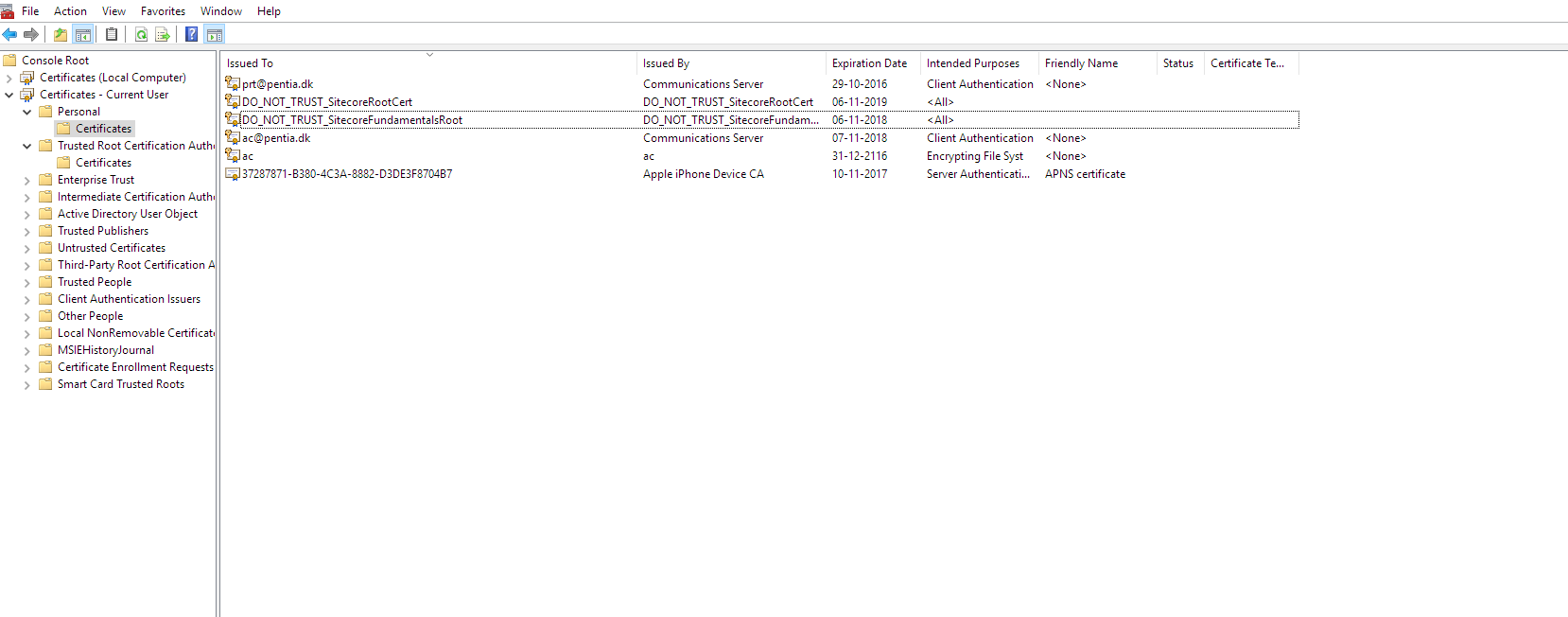

There was also a copy of the root certificates, as you can see below in my personal Certificate store. which also need to be deleted.

Part 3 – Delete from disk

In addition there can be a copy in C:\Certificates, which also need to be deleted.

Once the certificates are deleted from all locations everything worked. SIF 2 – the root certificates will expire in 10 years so no problem there, once it is released.

I hope this helps, Alan

Bonus help – Certificate not found, when calling xConnect

If you get an error that the xConnect client certificate can not be found in your sitecore log file!

But the certificate is in the store and has not expired!

This could be because the root certificate has expired.
